3600L Robust Water Immersion Test Equipment IPX7 Water Soaking Test Chamber

3600L Robust Water Immersion Test Chamber, Rain Testing Chamber for IPX7

Generl specifications:

• Outline size: L2180*W1580*H1300;
• Within size: L2000*W1500*H1200

Product introduction:

This immersion test chamber boasts a stainless steel casing renowned for its outstanding wear resistance, enabling it to endure friction, abrasion, corrosion, and diverse forms of damage. As a result, it finds extensive application across various scenarios. Additionally, its robust bottom can effortlessly support loads exceeding 200kg, showcasing its great load-bearing capabilities.

• The chassis is made of 304 stainless steel, which is firm and durable. Not only the double-layer structure is adopted but also the inner layer is welded with reinforcing ribs to ensure the reliability of the water tank.There is a stainless steel hook welded on the inside of the box, which is convenient for users to bind ropes and assist in lifting and placing test samples.
• The external toughened glass window is convenient for users to observe the test situation. There is a stainless steel ruler attached to the outside of the box, which can visually see the current water level.
• Universal casters are mounted on the bottom, which has good load-bearing and easy to move and fix the equipment.

The main technical parameters :

Working scene:

The IPX7 device designed for water immersion testing exhibits comprehensive applicability and substantial significance across various industries, from electronics and electrical gadgets to automotive parts and other fields. Additionally, its impressive resilience to considerable water pressures and impacts underpins the security and reliability of equipment undergoing underwater testing procedures.

Installation requirements:

• Aisle: Before the equipment enters the factory, please confirm that the space in the aisle, elevator, laboratory, etc. of the factory area is sufficient for the equipment to pass through.
• Water source: Please prepare clean water source(The manufacturer distributes a 6-meter water pipe with an inner diameter of 15mm).
• Site space: ≥W900×D1080×2000mm
• The laboratory needs to have drains or floor drains and have ventilation conditions.

Notes:

1 The pictures in this document are for customer reference only, and there may be color differences between the actual model and the pictures.

2 This document only lists some test standards, which does not mean that other test requirements and standards cannot be conducted. Welcome to communicate and discuss with us.

3 The water tank only meets the immersion test within 1.1 meters and cannot be pressurized. If the user needs a higher depth test, IPX8 test equipment can be selected.

4 The photos may not match the actual ones, and are for user reference only.

The pictures of product:

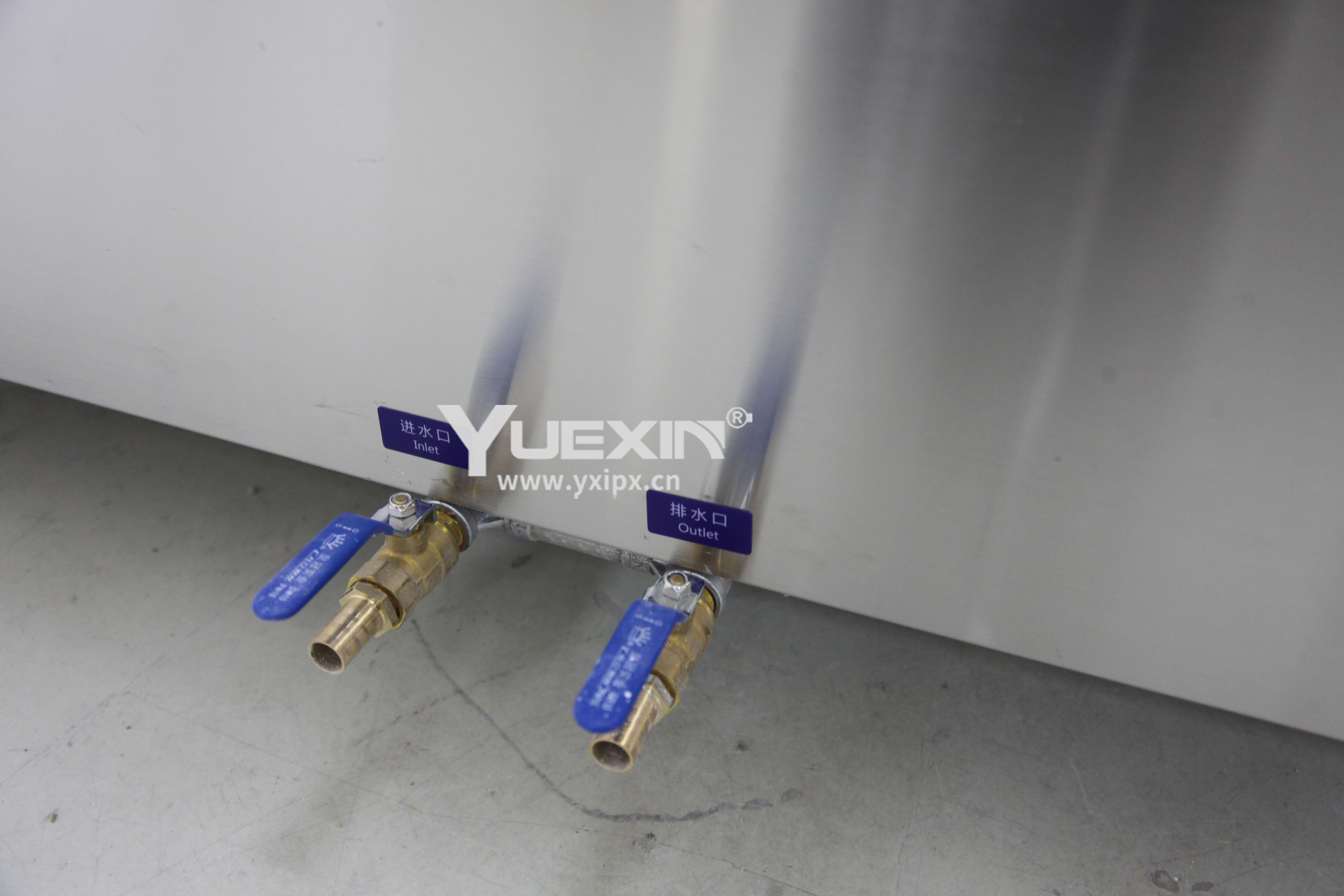

inlet and outlet water pipe
